Description

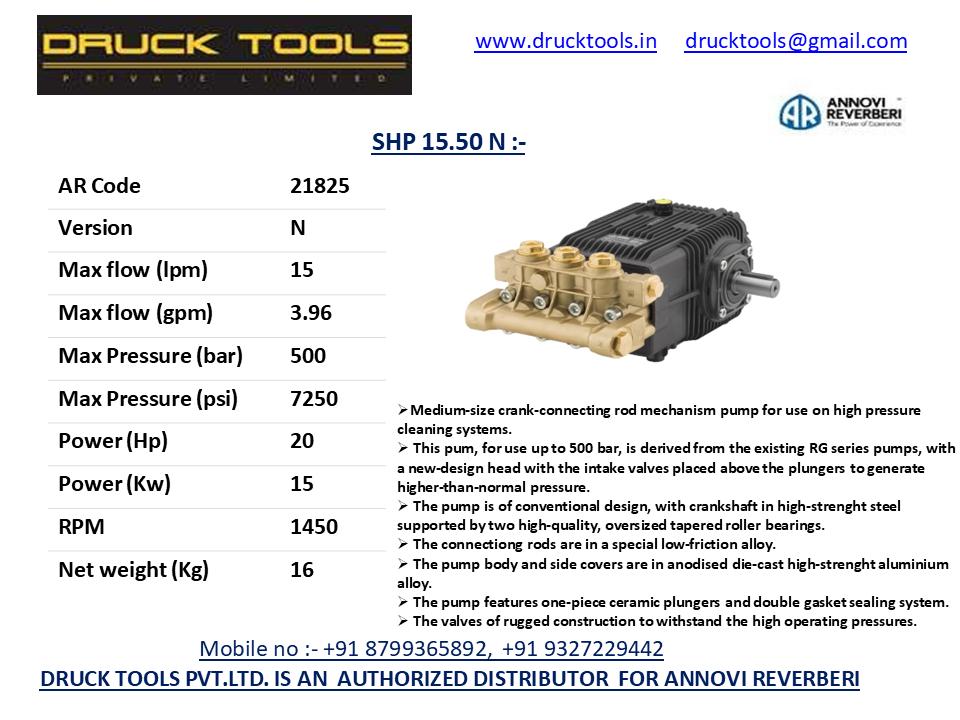

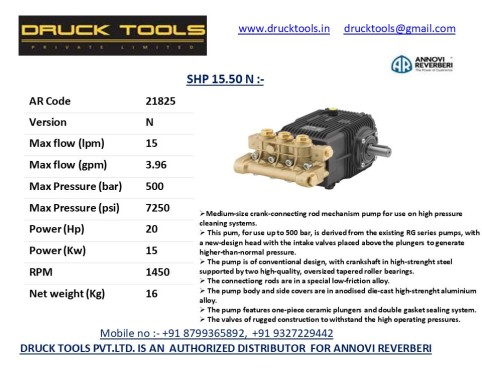

ØMedium-size
crank-connecting rod mechanism pump for use on high pressure cleaning systems.
Ø
This pum,
for use up to 500 bar, is derived from the existing RG series pumps, with a
new-design head with the intake valves placed above the plungers to generate
higher-than-normal pressure.
Ø The
pump is of conventional design, with crankshaft in high-strenght
steel supported by two high-quality, oversized tapered roller bearings.
Ø The
connectiong
rods are in a special low-friction alloy.
Ø The
pump body and side covers are in anodised die-cast high-strenght aluminium
alloy.
Ø The
pump features one-piece ceramic plungers and double gasket sealing system.
Ø The
valves of rugged construction to withstand the high operating pressures.
