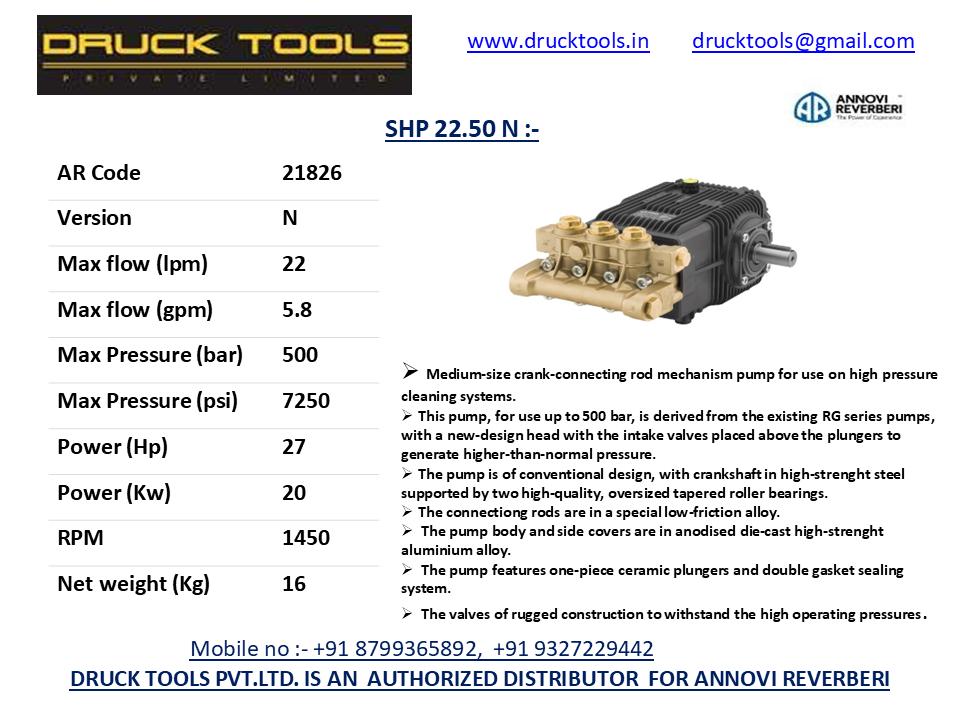

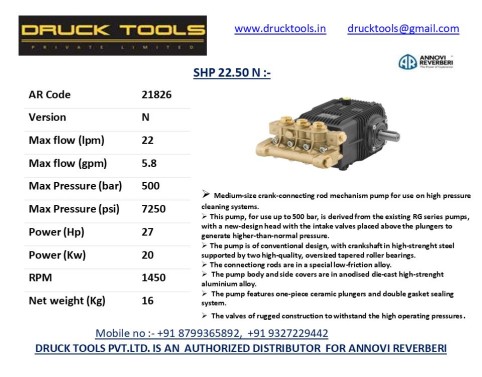

Description
ØMedium-size
crank-connecting rod mechanism pump for use on high pressure cleaning systems.
Ø
This pump, for use up to 500 bar, is derived from the existing RG series pumps,
with a new-design head with the intake valves placed above the plungers to
generate higher-than-normal pressure.
Ø The
pump is of conventional design, with crankshaft in high-strenght
steel supported by two high-quality, oversized tapered roller bearings.
Ø The
connectiong
rods are in a special low-friction alloy.
Ø The pump body and side covers are in anodised
die-cast high-strenght aluminium alloy.
Ø The pump features one-piece ceramic plungers
and double gasket sealing system.
Ø The valves of rugged construction to
withstand the high operating pressures.
